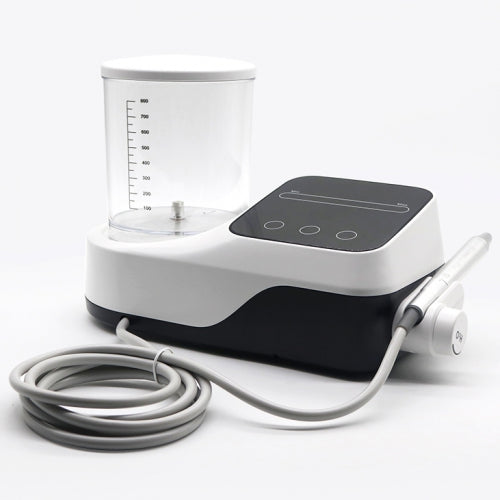

VRN-Q5 Ultrasonic Periodontal Treatment Device

Sine Wave Drive – Break Through the Tradition

• Avoids the instantaneous impact of traditional square-wave drives

• Produces gentle, regular vibration

• Improves treatment efficiency and patient comfort

Technical Specifications

• Input voltage: 230VAC, 50 Hz

• Input power: 35VA

• Wireless foot switch battery: size AA battery × 2

• Receiving sensitivity: -114 dBm (in accordance with China National Telecommunication Law)

• Receiving frequency: 2.4 GHz ISM band

• Recommended atmospheric pressure: 70 kPa – 106 kPa

• Water pressure: 0.01 MPa – 0.5 MPa

• Working state air consumption: 0 L/min

• Maximum water consumption: 50 mL/min

• Water bottle outlet pressure: 0.02 MPa

Main offset of scaling tip vibration

• Minimum value: 1 μm, deviation ±50%

• Maximum value: 100 μm, deviation ±50%

Half offset force

• Minimum value: 0.1 N, deviation ±50%

• Maximum value: 2 N, deviation ±50%

Operating Frequency

• Tip vibrating frequency: 25 kHz – 35 kHz

• Note: Tip frequencies vary between working tips but remain within this range.

Output & Safety

• Tip output power: 3 W – 20 W

• Fuse: T1AH 250V
